Ceiling Fan Speed Control

HOME
For one of those 3 or 4 blade decorative fans.

This is a reasonably nice design.

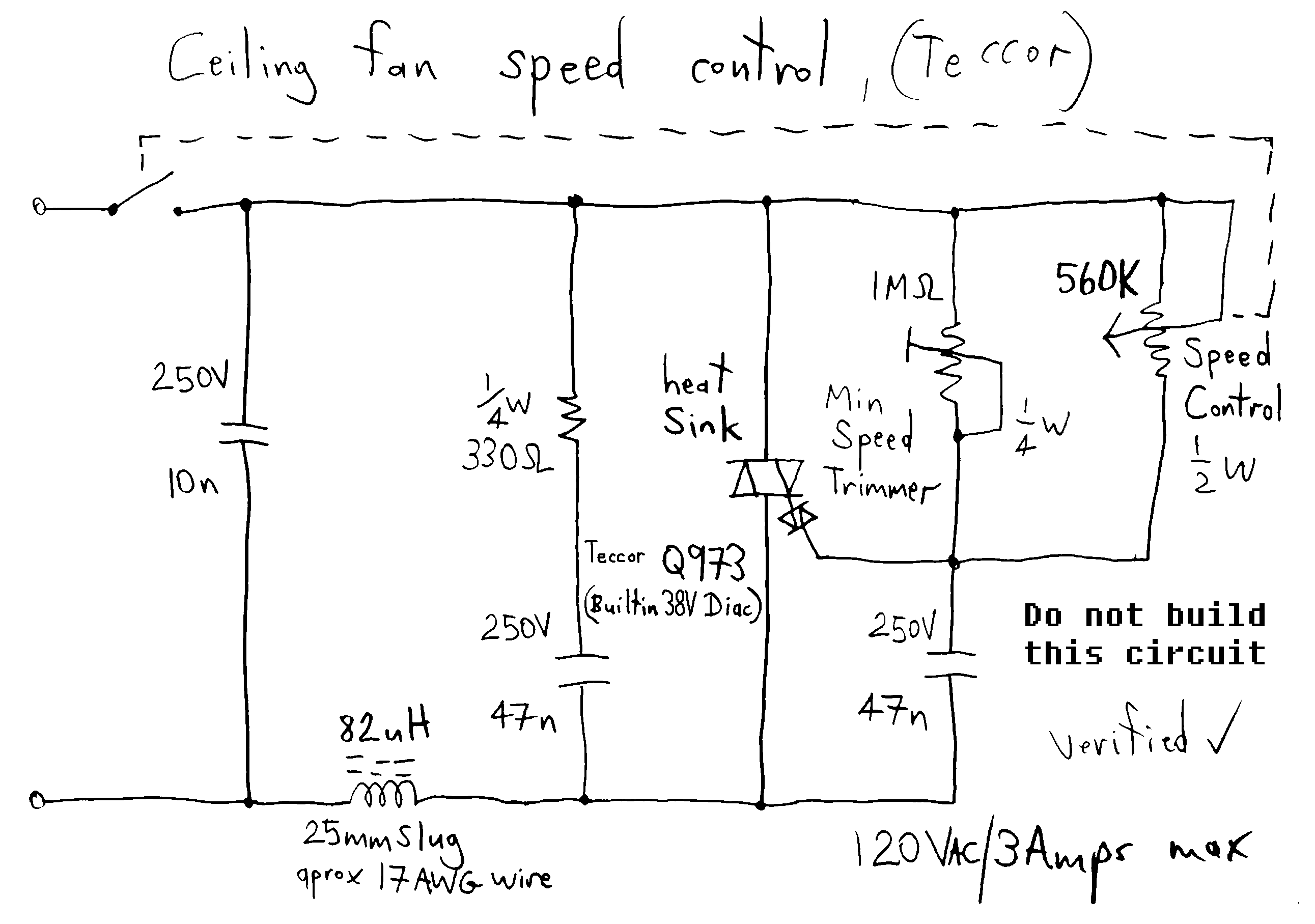

Circuit Diagram aka Schematic reverse engineered from circuit board
